Floor Heating

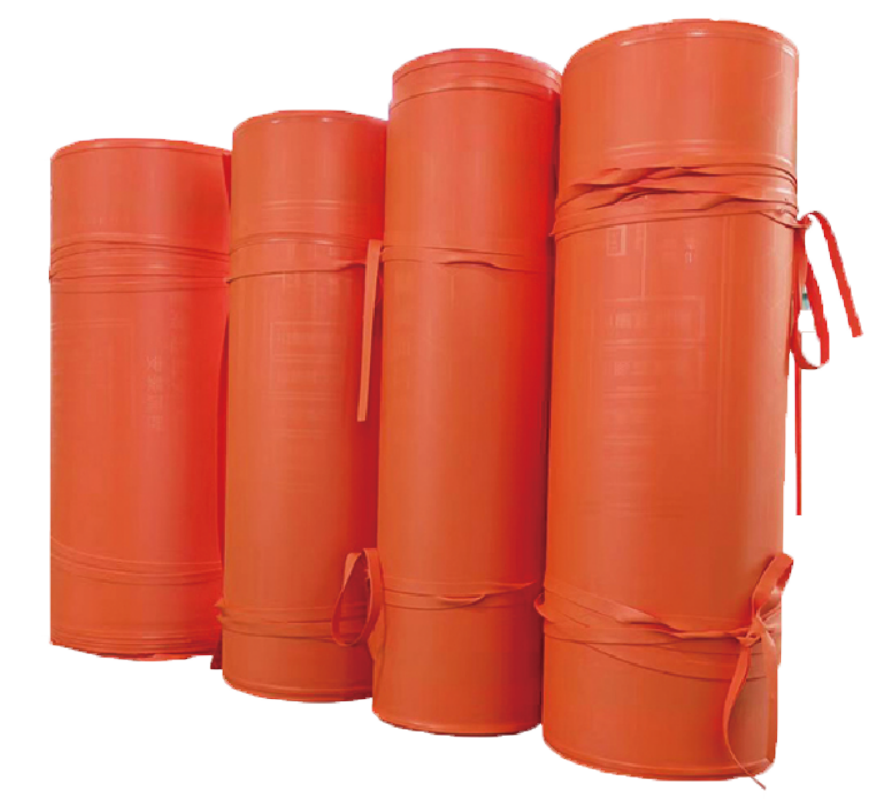

Graphene Far Infrared Encapsulation Heating Film
A project-ready, waterproof graphene heating film for residential, commercial, agricultural and industrial warming applications.
Graphene Heating Material
Fast, Even HeatingStable heat distribution for designed warming zones.
Electrical InsulationPVC waterproof insulation with sealed-edge construction.
IPX7 Waterproof RatingSuitable for correctly designed protected installations.
Flexible & DurableThin construction supports project-oriented installation.
Request Project Quote
High-Efficiency Protection. Durable Thermal Performance.
Made with advanced graphene heating material and polymer composite processing, this encapsulation film is designed to combine fast, even heat transfer with waterproof insulation and flexible mechanical durability. It is a heating material for equipment and space-warming applications.
Graphene Heating TechnologyHeating material for designed thermal applications
Waterproof InsulationPVC insulation and double-sealed edges
Long Service DesignSource document states a service life of more than 50 years
Far Infrared Heating
3–15 μm Far Infrared Thermal Output
Far infrared is a non-visible part of sunlight with a thermal effect. In standard test conditions, SHIBORUI graphene heating material is designed to emit far infrared output concentrated in the 3–15 μm range.
Waterproof Insulation
Sealed for Reliable Project Installation
The film uses PVC waterproof insulation and a double-sealed edge process. The source specification lists IPX7 waterproof performance and insulation resistance of at least 100 MΩ under rated conditions.
Waterproof performance depends on compliant installation and correct operating conditions. Do not soak the product for prolonged periods or use it outside its rated operating conditions.
| Technical Parameters | |||
|---|---|---|---|
| Panel Dimensions | 500mm (width)×230mm (length)×0.338mm | Maximum Surface Temperature | During operation, the graphene heating film surface temperature does not exceed 65℃ |
| Power per Panel | 27W（+5‰ - 10‰） / panel | Operating Temperature | Maximum 100℃, minimum -40℃. |
| Power Density | 240W / m² | Connection Length | 6.4m < 32 panels |
| Rated Operating Voltage | 220V / 50Hz | Weight | 0.5kg / panel |
| Waterproof Rating | IPX7 | ||
| Insulation Resistance | Above 100MΩ | ||
Application Range
One Heating Material for Multiple Project Contexts
Residential Heating
Whole-house floor warming and coal-to-electricity renovation projects.
Commercial & Public Buildings
Public buildings, factory workshops, gas stations and special spaces.
Agriculture & Farming
Greenhouse warming, seedling cultivation and constant-temperature farming.
Industrial Heating
Food drying, baking, wood drying, heating schemes and insulation projects.
Warming Product Integration
Non-medical warming products and controlled thermal equipment.
