Graphene Far Infrared Floor Tile Module

Comfortable heating solution integrating floor decoration and far infrared thermal output.

Graphene Floor Tile Module

Comfortable Heating for Modern Living

A new way of comfortable heating. Green, low-carbon, eco-friendly, combining heating and energy efficiency.

Using far infrared thermal radiation heating, it provides a comfortable body sensation and reduces the discomfort caused by strong air convection from air conditioning.

Green & Low CarbonEco-friendly heating with energy-saving performance.

Far Infrared RadiationComfortable thermal output without forced air convection.

Decor IntegrationSeamlessly combines heating with tile or wood floor decoration.

Long Service LifeDesigned for more than 50 years of reliable operation.

Request Project Quote

Heating Tile / Heating Module

An integrated solution combining heating and tile decoration — healthy, ecological, and environmentally friendly.

Note: This product is a decorative heating material. It does not possess medical, health care, or wellness efficacy.

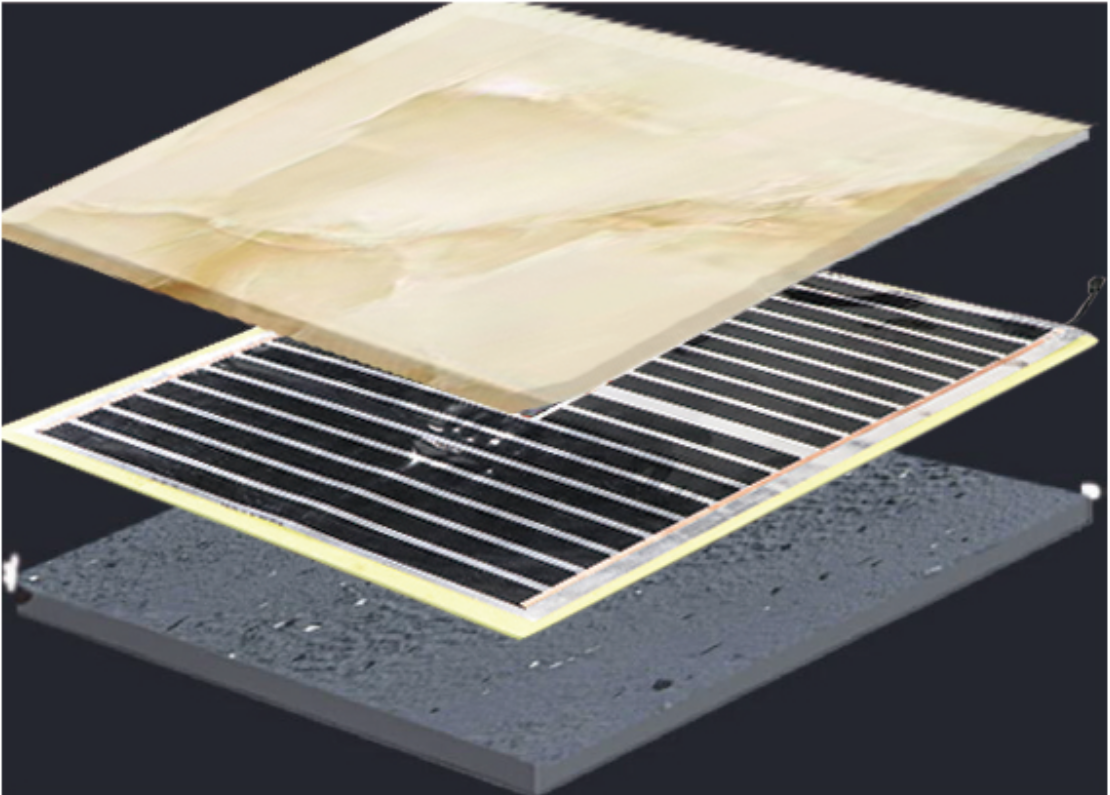

Graphene far infrared heating module installed beneath ceramic tile — Electric Heating Module Tile Cross-Section

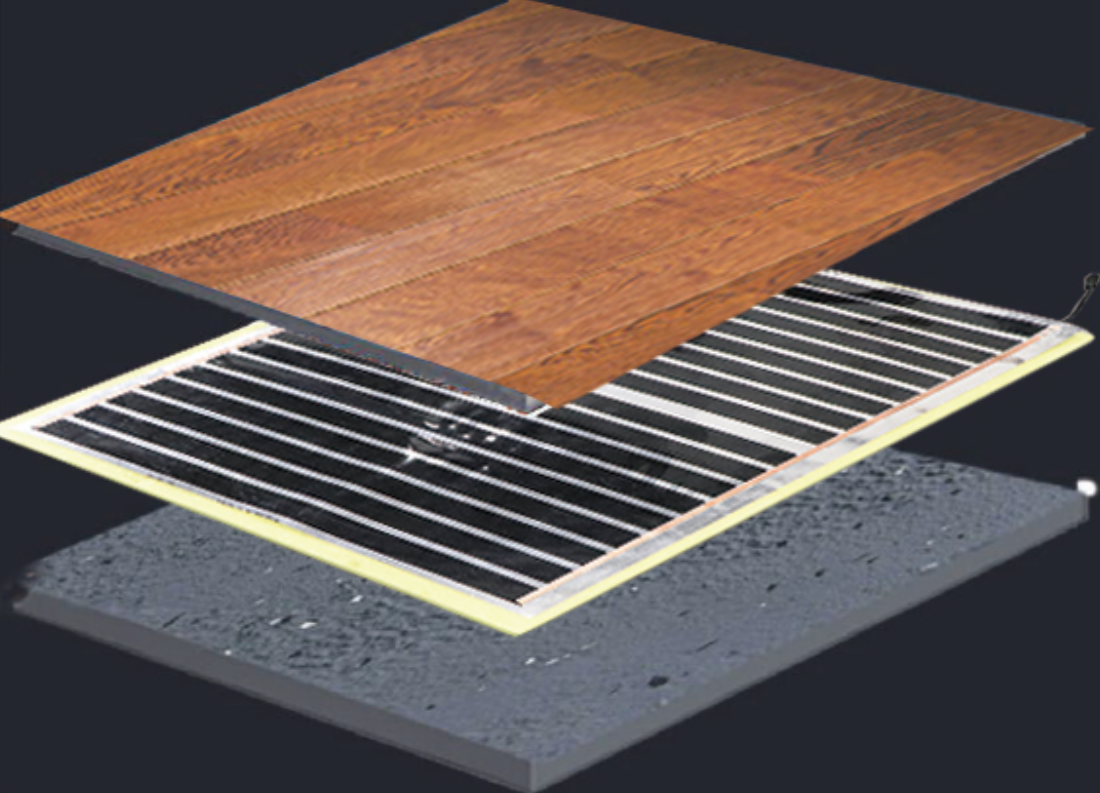

Graphene far infrared heating module installed beneath wood flooring — Electric Heating Module Wood Floor Cross-Section

Technical Parameters

Technical Specifications

Technical Parameters
Single Piece Size	580mm(W)×1180mm(L) 780mm(W)×780mm(L) 730mm(W)×1480mm(L)	Single Piece Power	165W (+5~-10%) / pc 150W (+5~-10%) / pc 300W (+5~-10%) / pc
Power Density	240W / m²	Operating Ambient Temp	Max 100°C, Min -40°C
Rated Voltage	220V, 50Hz	Weight	0.6~1.1kg / pc
Insulation Resistance	≥100MΩ	Max Surface Temp	≤65°C during operation
Custom Sizes Available		Dimensions and specifications can be customized according to project requirements
