01
Excellent Thermal Stability
Safe operation over long-term use with minimal heat efficiency degradation and stable working conditions under continuous operation.
← All Products
Floor Heating
Graphene Far Infrared Heating Floor
An integrated graphene heating floor engineered for uniform whole-room warmth, durable performance, and clean installation.

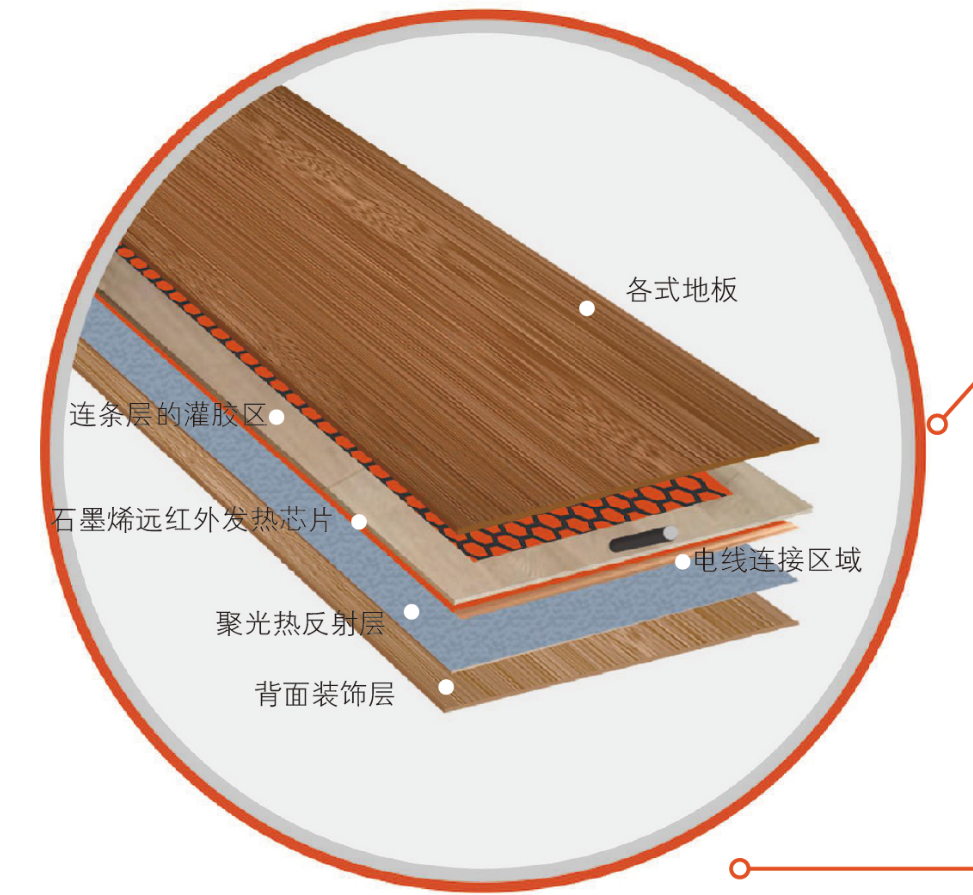

Working Principle
Graphene Far Infrared Heating Floor Technology
The core component is a far infrared heating chip built with 21st-century high-performance graphene material, fully leveraging graphene's excellent rapid thermal conductivity and heat dissipation properties. The material's thermal conductivity reaches 5300 W/m·K. At room temperature, electron mobility exceeds that of carbon nanotubes, diamond, and silicon crystal materials, while electrical resistivity is far lower than common metal conductors such as copper and silver.
Building on these material advantages, the new-generation graphene far infrared heating chip achieves a leap in performance with thinner and lighter panels, faster heat conduction, uniform surface heating, minimal long-term performance degradation, and a designed service life of up to 50 years.
When powered, carbon atoms in the graphene chip generate thermal motion under electrical excitation. Friction and collision between carbon atoms produce heat energy, which is transmitted outward through far infrared radiation and convection, delivering whole-room heating. The chip acts as a unidirectional heat source fully encapsulated inside the floor, with all components connected through professional waterproof connectors for safe insulation and lower operating energy consumption.
Key Advantages
Three Core Performance Strengths
02
Uniform Heating Performance
Superior electrical and thermal conductivity of graphene keeps temperature deviation across the effective heating area within ±3°C.
03
Enhanced Safety & Durability
Significantly improved adhesion strength and thermal coupling. Panels resist delamination while overall safety and waterproofing are upgraded.
Technical Parameters
Technical Specifications
| Technical Parameters | |||
|---|---|---|---|
| Dimensions | 1217 × 168.5 × 16 mm | Power Density | 220 W / m² |
| Rated Voltage | 220V, 50Hz | Heating Method | Far infrared radiation + convection |
| Chip-to-Surface Distance | 5–6 mm | Warm-Up Time | 5–15 minutes |
| Temperature Uniformity | Deviation ≤ ±3°C | Insulation Resistance | ≥100 MΩ |
| Designed Service Life | Up to 50 years | Waterproof Rating | Professional waterproof connectors |
| Custom Sizes & Patterns | Dimensions, power, and wood grain patterns can be customized according to project requirements | ||
Application Range
Suitable for Residential & Commercial Spaces
Residential Heating
Living rooms, bedrooms, and whole-house floor warming with decorative wood grain finishes.
Commercial Spaces
Offices, hotels, and retail spaces requiring integrated heating and premium floor decoration.
Wellness & Leisure
Yoga studios, spas, and relaxation spaces benefiting from comfortable far infrared warmth.
Agriculture & Farming
Greenhouse flooring and controlled-environment agricultural facilities.
